Z41Y-600LbP forged steel gate valve

Z41Y-600LbP forged steel gate valve

Short Description:

Technical requirement

1.Design and manufacture according to: JB/T7746,GB/T12224

requirements.

2.Valve   structure   length:   GB/T12221   or   factory   standard

requirements.

3.Flange end size according to: GB/T9113,JB/T82.1-82.4

HG20592(RF,FM,RJ)

4.Inspection  and  test  according  to  JB/T9092  or  GB/T26480

requirements.

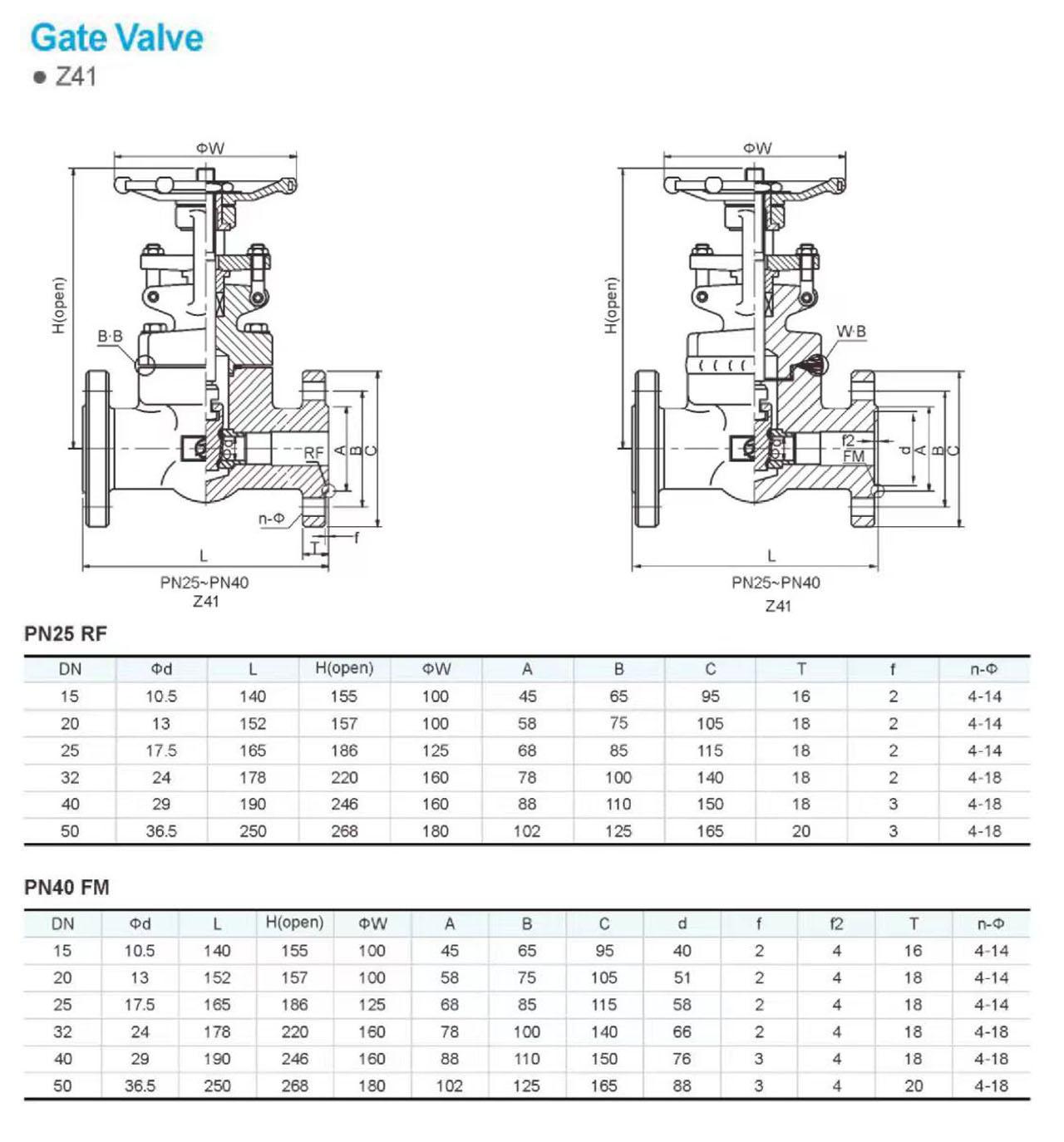

5.Structural features: B-B (central bolt) WB (central welding)

Flow. Ful diameter (FP) Reduced diameter RP.

6. The main materialA105N,LF2,LF3,F11,F5,F22, F304,F304L,

F316,F316L,F321,F304H,F316H,F321H,F51,F53,F55,F91,F92,

F347,310S,800H,600,625 special materials and so on
