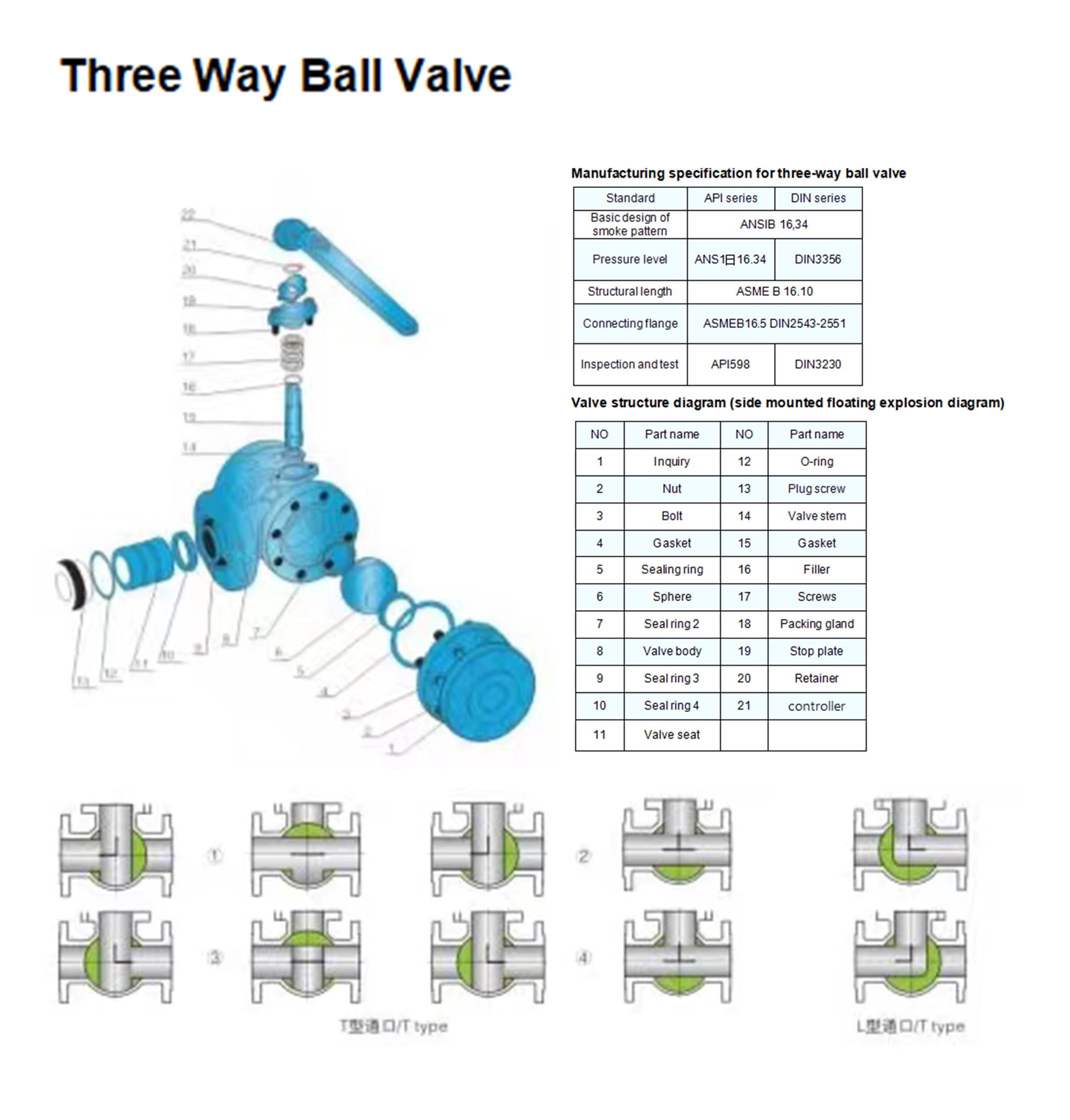

Three-way ball valve is suitable for switching, mixing and diverting corrosive or highly corrosive liquid, gas, powder medium at -46℃ -200 ℃ temperature; In the process of opening and closing, the flow path has a small pressure loss, easy operation and easy maintenance: the five flow directions (see the figure on the right: one L-type and four T-type) meet different process requirements, and can be manually, pneumatic and electric drawing.
Structural characteristics
1. The reading seat can be designed into a four-fixed floating ball and a fixed ball. Stable flow state, reliable sealing;
2, the structure can be designed into side loading type and top loading type, two-way sealing design; Flow direction switch no stream;
3, rib fly out valve stem design;
4, anti-static design;
5, two (opening and closing position) lead the design.
