Forged steel Flange Gate Valves 1500LB

Forged steel Flange Gate Valves 1500LB

Short Description:

Short Description:

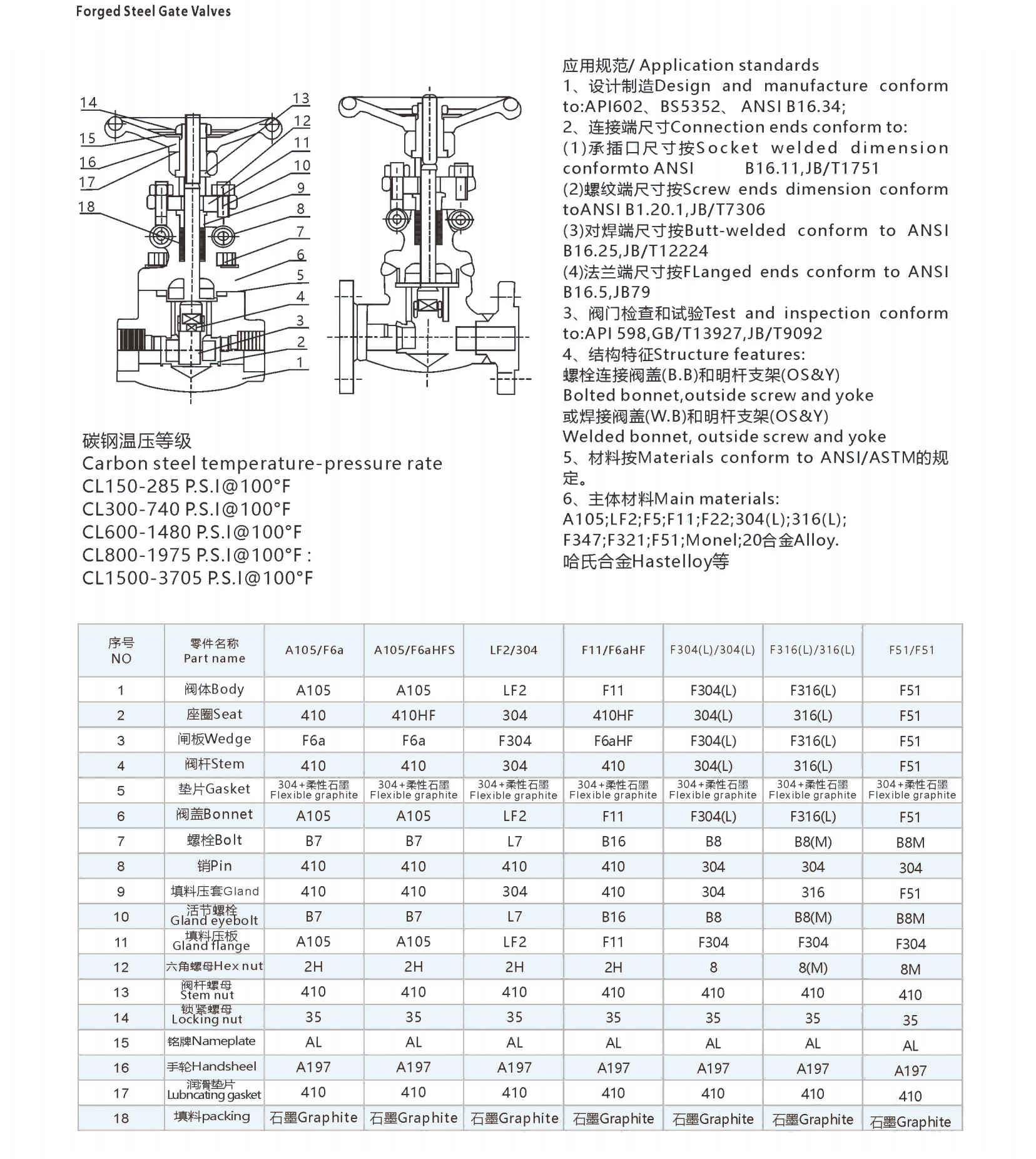

1、 Design and manufacture conform to API602、BS5352、ANSI B16.34

2、 Connection ends conform to

(1)Socket welded ends conform to ANSI B16.11,JB/T1751

(2)Screw ends conform to ANSI B1.20.1,JB/T7306

(3)Butt- welded conform to ANSI B16.25,JB/T12224

(4)Flange ends conform to ANSI B16.5,JB79

3、 Test and inspection conform to: API598,GB/T13927,JB/T9092

4、 Struture features;

Bolted bonnet;three piece;

5、 Materials conform to ANSI/ ASTM.

6、 Main materials:

A105;LF2;F5;F11;F22;304(L);316(4);

F347;F321;F51;Monel;20 Alloy.
