Forged steel Check Valves

Forged steel Check Valves

Short Description:

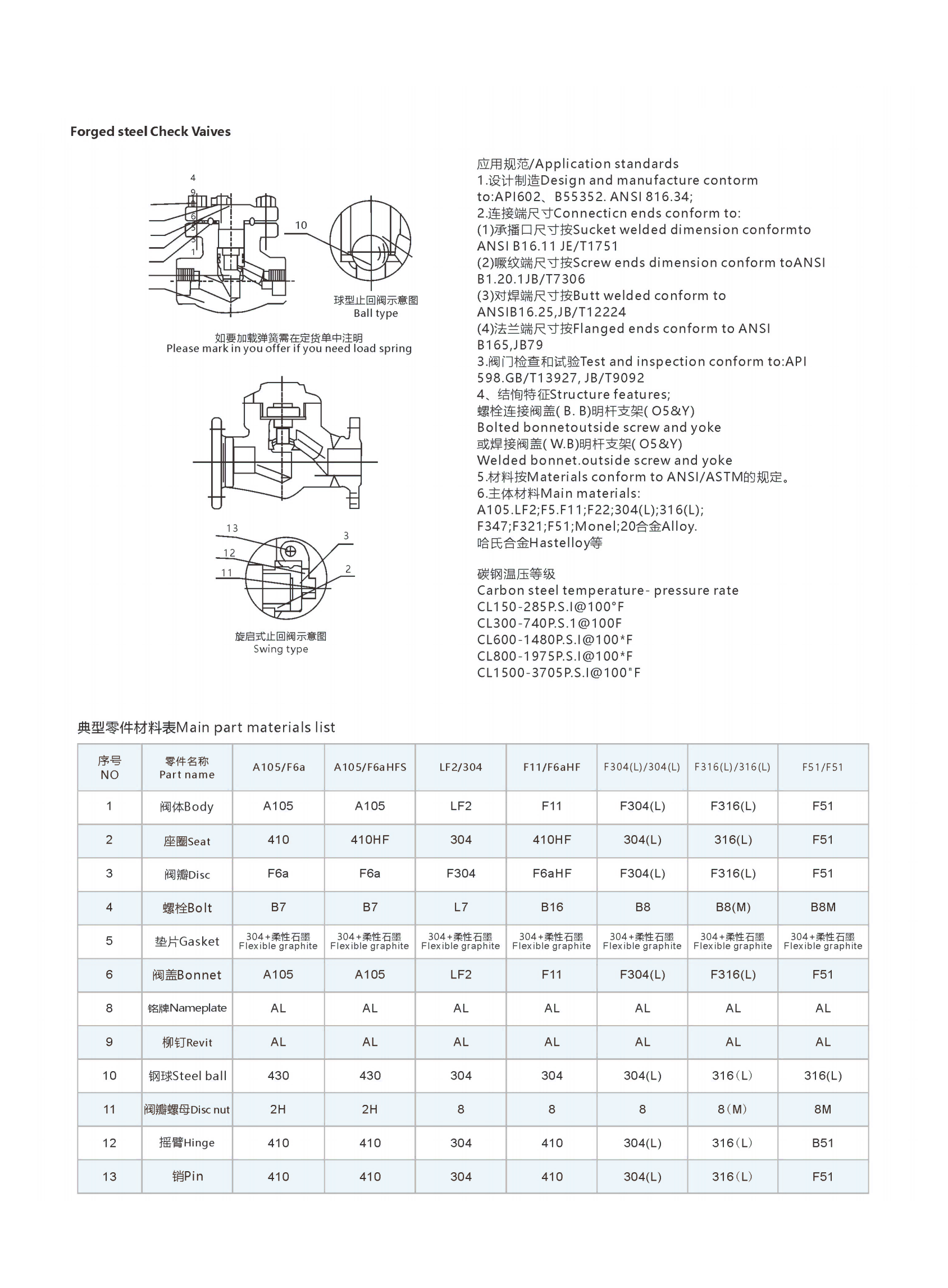

Application standards

1.Design and manufacture conform to:AP¹602 、B55352.ANSI816.34;

2.Connection ends conform to:

(1)Sucket welded dimension conform to ANSIB16.11JE/T1751

(2)Screw ends dimension conform to ANSI B1.20.1JB/T7306

(3)Butt welded conform to ANSIB16.25,JB/T12224

(4)Flange ends conform to ANSI B165,JB79

3.Test and inspection conform to:API 598.GB/T13927,JB/T9092

4.Structure features;( B.B)(05&Y)Bolted bonnet outside screw and yoke (W.B)(O5&Y)

Welded bonnet.outside screw and yoke

5.Materials conform to ANSI/ASTM

6.Main materials:

A105.LF2;F5.F11;F22;304(L);316(L);F347;F321;F51
