Forged Steel Ball Valve

Forged Steel Ball Valve

Short Description:

Short Description:

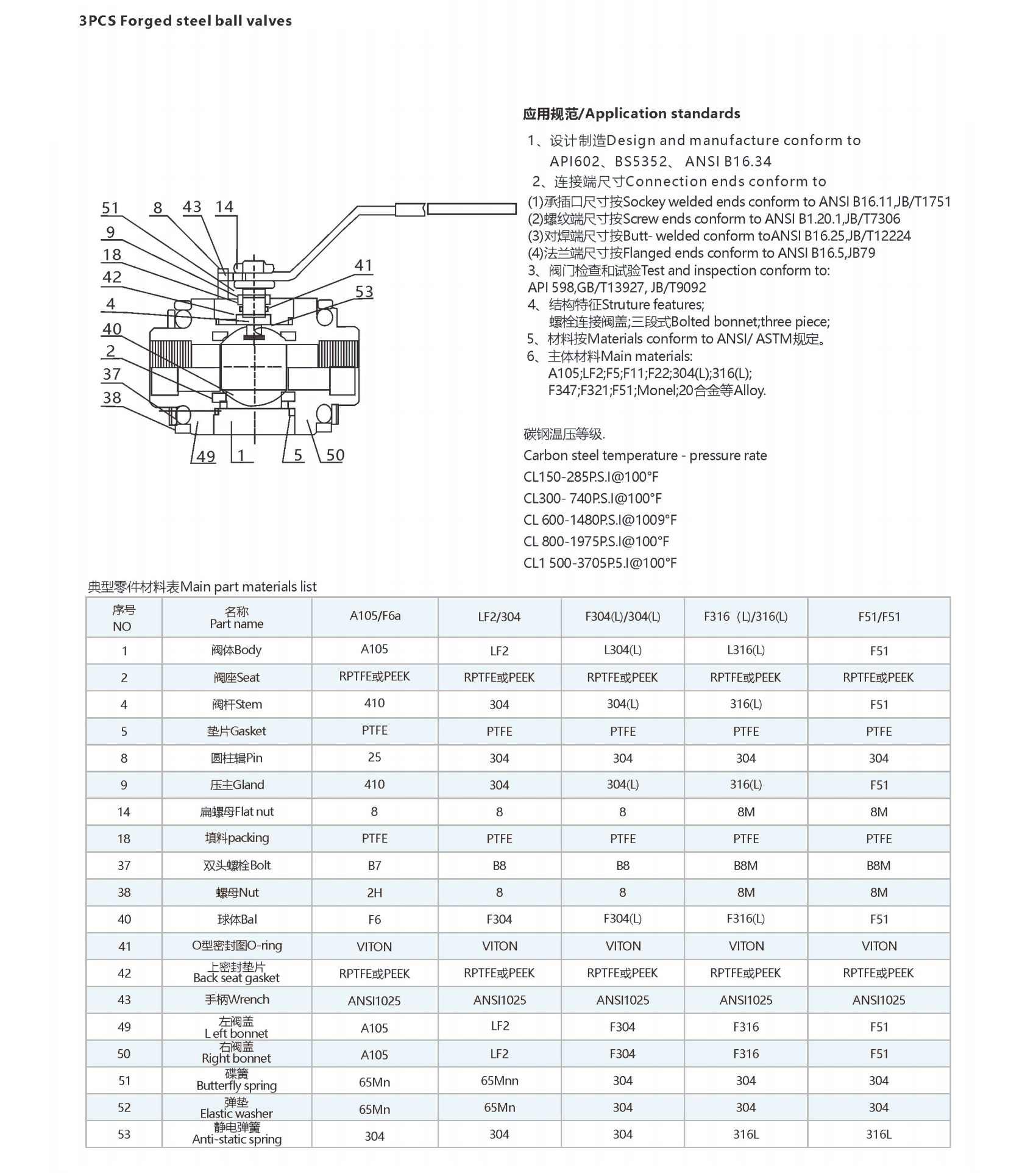

Application standards

1.Design and manufacture conform to:AP1602,B55352.ANSI B16.34

2.Connection ends conform to:

(1)Socket welded dimensicn conformto ANSI B16.11,JB/T1751

(2)Screw ends dimension conform to ANSI B1.20.1JB/T7306

(3)Butt we ded conform to ANSI B16.25,JB/T12224

(4)Hlanged ends conform to ANSI B16.5,JB79

3.Test and inspection conform to API59B,GB/T13927,JB/T9D92

4.Structure features;Bolted bonnet.outside serew and yoke

                                Welded bonnetoutside screw and yoke

5.Materials conform to ANSI/ASTM

6.Main materials:

A105;LF2;F5;F11;F22;304(L):316(L)

:F347;F321:F51;Monel;20 Allay.Hastelloy
