Y Type Strainers

Y Type Strainers

Short Description:

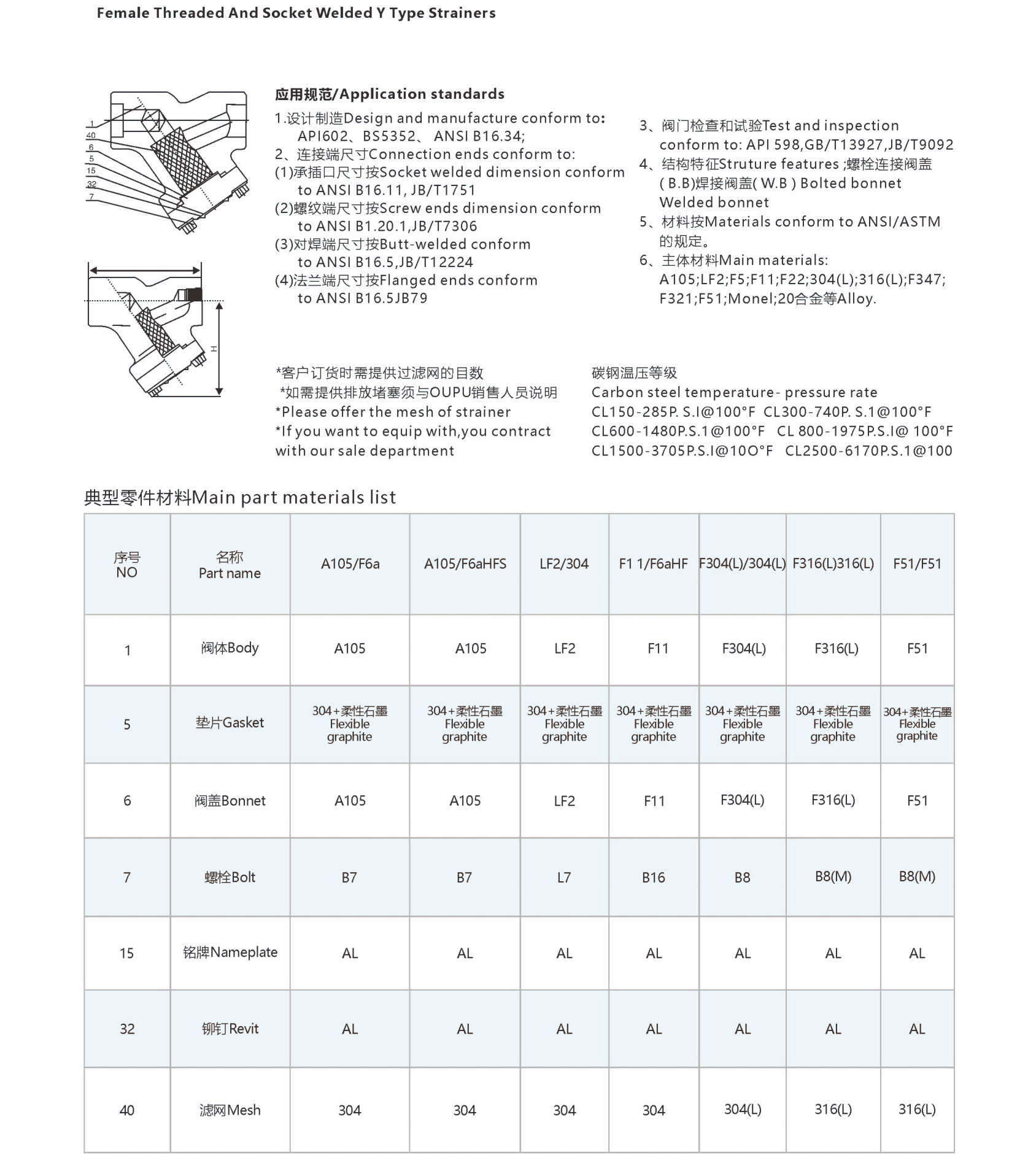

Application standard:

1.Design and manufacture conform to: AP1602、BS5352、ANSI B16.34;

2.Connection ends conform to:

(1)Socket welded dimension conform to  ANSI  B16.11,JB/T¹751

(2)Screw ends dimension conform to ANSI B1.20.1,JB/T7306

(3)Butt-welded conform to ANSI B16.5,JB/T12224

(4)Flange ends conform to ANSI B16.5JB79

3.Test and inspection conform to:API598,GB/T13927,JB/T9092

4.Struture features;(B.B)(W.B)Bolted   bonnet Welded   bonnet

5. Materials conform to ANSI/ASTM

6.Main materials:

A105;LF2;F5;F11;F22;304(L);316(L);F347; F321;F51;



Carbon steel temperature-pressure rate

CL150-285P.S.I@100°F     CL300-740P.S.1@100°F

CL600-1480P.S.1@100°F    CL800-1975P.S.I@100°F

CL1500-3705P.S.I@100°F   CL2500-6170P.S.1@100°F
